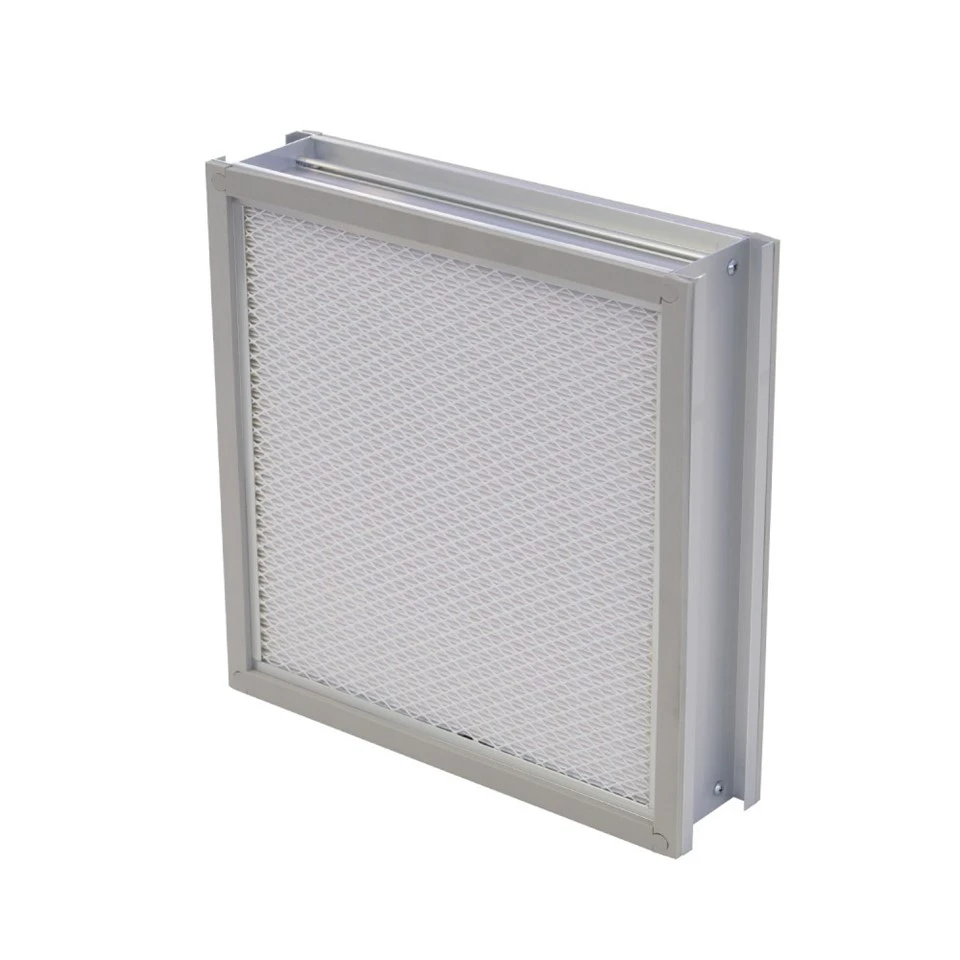

Mini Pleat HEPA Lim
Peb Mini Pleat HEPA Filter muab ultra{0}}siab particle capture, nrog efficiency xws li 99.95% mus rau 99.9995% nyob ntawm qib.
Tsim los rau kev siv tshuaj, kev kho mob, chav kuaj, thiab ib puag ncig ib puag ncig, qhov Mini Pleat HEPA Filter no ua kom huab cua huv, ruaj khov airflow, thiab txhim khu kev qha ntev - ua haujlwm rau cov ntawv thov tseem ceeb.
Khoom Taw qhia
Product Description
Peb cov lim dej HEPA muab siab - ua kom huv huv huab cua zoo, ntes feem ntau ntawm cov khoom hauv huab cua, suav nrog plua plav, paj ntoos, pa luam yeeb, thiab kab mob. Ua los ntawm cov microfibers zoo tshaj plaws, lawv ua kom ntev - ua haujlwm tau ntev thiab tswj cov huab cua tsis zoo, txo kev siv hluav taws xob rau HVAC thiab huab cua tuav.
Nrog cov plua plav tuav tau zoo heev, lawv txuas lub neej kev pab cuam thiab txo qis txij nkawm zaus. Cov ntxaij lim dej no muaj zog, corrosion-resistant, thiab haum rau qhov kub thiab txias, ua rau lawv zoo tagnrho rau chav huv, chav kuaj, tsev kho mob, thiab ib puag ncig kev lag luam. Peb kuj muab cov customized loj thiab specifications kom tau raws li ntau yam kev thov.
Kev ntseeg siab los ntawm cov neeg siv khoom thoob ntiaj teb, peb cov HEPA cov ntxaij lim dej sib xyaw ua ke cov tshuab pom zoo, kev ua tau zoo, thiab zoo ib yam, muab huab cua nyab xeeb, huv si, thiab noj qab nyob zoo.
- Khoom siv thiab kev tsim kho
Lim Media: Siab -zoo borosilicate iav fiber ntau / polypropylene
Ncej: Aluminium, galvanized steel, lossis stainless hlau
Sealant: Polyurethane lossis silicone gasket rau airtight sealing
Kev ntsuas kub: -10℃txog 80℃tus qauv; xaiv qhov kub kub txog li 120 degree
-Kev ua tau zoo thiab cov qauv
H13 Mini Pleat HEPA Lim: Ntau dua lossis sib npaug rau 99.95% @ 0.3 μm
H14 Mini Pleat HEPA Lim: Ntau dua lossis sib npaug rau 99.995% @ 0.3 μm
Kev Xeem Txuj Ci: EN1822: 2019
Kev Xeem Leakage: 100% tus kheej kuaj nrog PAO / DOP aerosol
-Airflow thiab siab poob
Airflow Peev Xwm: 200-3400 m³ / h (customizable)
Kev poob siab pib: 120-250 Pa nyob ntawm qhov loj thiab qib
Max ua haujlwm siab: 500 Pa
Lub neej ua haujlwm: 12-24 lub hlis nyob rau hauv ib txwm muaj
Hom Qauv
|
Nominal loj |
Qhov loj me |
Cua ntws |
Pib |
Kawg |
|
20×20×3 |
484×484×70 |
630 |
249 pab |
500 pab |
|
25×25×3 |
630×630×70 |
1100 |
||
|
23×47×3 |
570×1170×70 |
1000 |
110 pab |
220 pab |
|
47×47×3 |
1170×1170×70 |
2100 |
||
|
20×20×4 |
484×484×90 |
630 |
220 pab |
440p ua |
|
25×25×4 |
630×630×90 |
1100 |
||
|
23×70×4 |
570×1170×90 |
1000 |
98 pab |
100 pab |
|
70×70×4 |
1170×1170×90 |
2100 |
Nta & Cov txiaj ntsig
- High particle capture efficiency ua kom cov pa phem -dawb
- Tsawg airflow kuj txo lub zog noj thiab HVAC load
- Cov xov xwm ruaj khov thiab thav duab rau ntev - lub sijhawm ruaj khov
- Mini Pleat tsim ua kom pom qhov chaw pom thaum tuav qhov loj me
- Customizable tsim rau retrofit thiab tshiab installation
- Kev sim ib leeg los lav qhov xau{0}} ua haujlwm dawb
- Haum rau ib puag ncig tseem ceeb nrog kev tswj hwm nruj
Daim ntawv thov
Peb Mini Pleat HEPA cov ntxaij lim dej yog tsim los rau siab -ua haujlwm huab cua pom thoob plaws ntau qhov chaw.
Lawv tau siv dav hauv chav huv, chav kuaj, chaw tsim tshuaj, tsev kho mob, thiab chaw kho mob kom tsis muaj menyuam thiab muaj kab mob - huab cua dawb.
Hauv cov chaw tsim khoom, lawv tiv thaiv cov cuab yeej rhiab heev thiab cov txheej txheem los ntawm cov plua plav thiab cov khoom sib kis. Cov ntxaij lim dej no kuj zoo tagnrho rau HVAC cov tshuab hauv cov tsev lag luam, cov chaw khaws ntaub ntawv, thiab cov khoom siv hluav taws xob, ua kom cov huab cua zoo ib yam thiab txo qhov kev pheej hmoo ntawm cov khoom siv tsis ua haujlwm. Nrog lawv cov qauv tsim thiab cov plua plav siab tuav, Mini Pleat HEPA cov ntxaij lim dej yog tsim rau cov chaw uas muaj huab cua zoo thiab yuav tsum tau yooj yim installation. Lawv tuaj yeem siv rau hauv cov khoom siv huab cua, kiv cua lim units (FFUs), thiab laminar flow systems, muab cov huab cua huv, nyab xeeb, thiab noj qab nyob zoo. Lawv versatility ua rau lawv yog ib qho kev daws teeb meem tseem ceeb rau txhua qhov chaw xav tau siab -kev ua haujlwm huab cua pom.
Hais txog SNYLI
Txij li thaum nws tsim nyob rau hauv 2010, SNYLI tau cog lus rau kev txhim kho huab cua purification kev lag luam, thiab yuav txuas ntxiv txhim kho nws txoj kev tshawb fawb thiab kev loj hlob muaj peev xwm los pab txoj kev loj hlob ntawm huab cua purification kev lag luam.
Xaiv peb cov HEPA limkom tau txais txiaj ntsig zoo, ruaj khov, thiab tus nqi - cov kev daws teeb meem huab cua zoo!
